Flatwrap Razor Wire
Flatwrap Razor Wire is fabricated using Single Strand Razor Wire which is then clipped to create flat sheets. It can be installed against the fences and wall, provide a neat but effective barrier.The Outside Diameter：450mm，600mm，900mm,The length : 6-15m.Flat Wrap Razor Wire is the preffered choice for installations where a neat appearance is required. The Flat Sheets can be used to upgrade any existing fence or wall. Add Flat Wrap Razor Wire directly to a wire mesh fence, or add it on top of a brick or pre-cast wall to instantly upgrade your securit.Flat wrap razor mesh security barrier is more economical than concertina razor security barrier, because its production requires significantly less concertina wire, so in those cases where no special requirements for security of enclosing an object, the flat razor barrier security can be a good choice.
 |
 |
 |

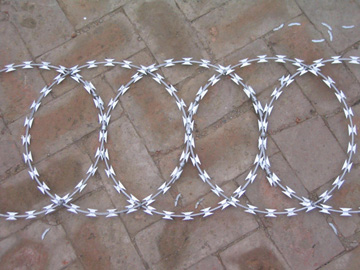

Galvanized Flatwrap Razor Wire |

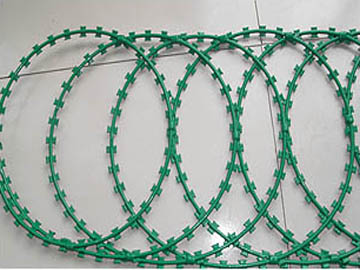

PVC Coating Flatwrap Razor Wire |

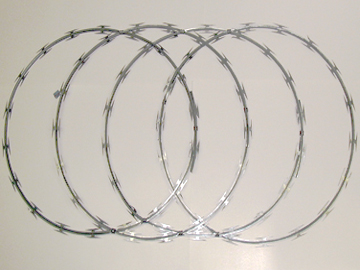

Stainless Steel Flatwrap Razor Wire |
| Flatwrap Razor Wire Specifications - Standard Coil Sizes | ||
| Height | Length | Weight |
| 500 mm (20 in) |
15 m (50 ft) |
9.5 kg (21 lbs) |
| 700 mm (28 in) |
15 m (50 ft) |
13 kg (29 lbs) |
| 900 mm (36 in) |
15 m (50 ft) |
14.5 kg (32 lbs) |
| |
|
|
|
Flat concertina razor wire 900/22: The flat spiral barrage 900 mm with a density of stacking turns 4.2 turns at 1 meter. The coils are connected in 13 points stapling staples. Staples are made of galvanized steel. The flat spiral fence has high resistance to destruction. Even with the full cross-section cutting it does not change the geometry of obstacles, if the armature of the fence is still intact. Flat barrier concertina has a nice appearance, easy to mount the brackets and rebar wire.
Flat wrap razor wire Specifications: Inside wire: 2.50mm (-0.00, +0.10mm), tensile strength: 160kg/mm2 (min).zinc plate: 200gr/m2 (min) hot dipped galvanized.Outside sheet: 0.50mm (-0.00, +0.10mm) hot dipped, bright, shining.Height: 90cm,Weight: 1kg/m (min),Coil length: 16m coils,Coil weight: 16 kg,Packing: each coil wrapped with paper and hessian cloth.45cm circle, cross type, 56 loops, Ideal opening 6-7m, Max.opening: 8.5-9.5m, 3 tie clips, Packing: each coil wrapped with paper and hessian cloth.Coil weight: 7kgs. Flat razor wire is installed on wire fence,Flat razor coil in rolls,Razor flat wrap fencing with medium barb, circle diameter of 1200 mm, in stainless steel or galvanised materials, 4 feet high fencing is around a tea plantation for preventing goat, cow and human trespass.
